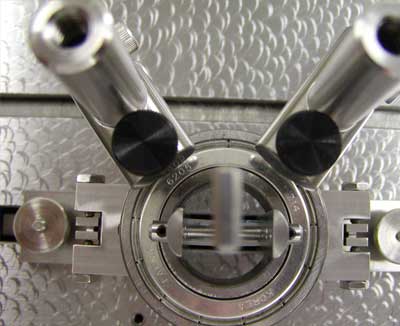

Welcome To Measurement System Analysis

A measure System Analysis, abbreviated MSA, may be a specially designed experiment that seeks to spot the parts of variation within the measure. Even as processes could manufacture a product verily, the method with measurements and information could have variation and manufacture defects.
A measure analysis evaluates the take a look at methodology, measure instruments, and therefore the entire method obtains measurements to make sure the integrity of information area unit used for analysis (usually quality analysis), additionally to know the implications of measure error for a product or process’ selections created . MSA is a crucial part of six letter methodology and different quality management systems.

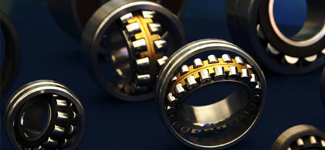

Checking aid list

Checking aid includes fixtures, gages, models, templates specific to the merchandise being submitted. HCH ought to certify that every one facet of checking aid is in agreement with half dimensional needs and is answerable for preventive maintenance of such checking aid for parts’ life.

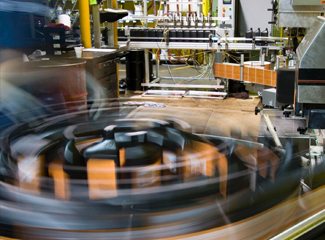

Controlling of measuring and monitoring devices

The science lab workers in HCH shall verify the watching and calculations to be undertaken and therefore the watching and measuring devices required to produce proof of conformity of product to determined needs.

We establish processes to confirm that watching and analysis are often applied and ar applied in a very manner that's in keeping with the watching and calculation needs.

The results of the calibrations have to be compelled to be recorded. If the measuring instrument seems to be out of standardisation, then it's necessary to seem at the results of the measurements that were antecedently crazy this device.

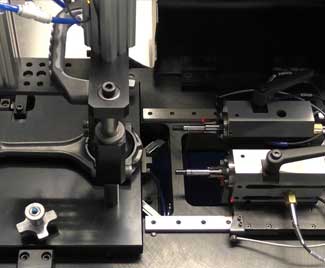

Gage repeatability and reproducibility study (Gage R&R)

The purpose of the Gage R&R study is to spot the quantity of measure error related to a selected gage - manufacturing a quantitative confidence level which might be evaluated. This GR&R price obtained ought to be the premise for call on whether or not the gage ought to get replaced, repaired, operators trained, or no action taken.

  • 1. 4=3.27 for two trials and a couple of.58 for three trials;
  • 2. D3=0 for up to seven trials.

    • UCLR represents the limit of individual R's. Circle those which are on the far side this limit. Establish the cause and proper.

    Repeat these readings mistreatment a similar appraiser and units as originally used or discard prices and re-average and recomputed R and therefore the limiting value from the remaining observations.
